Description

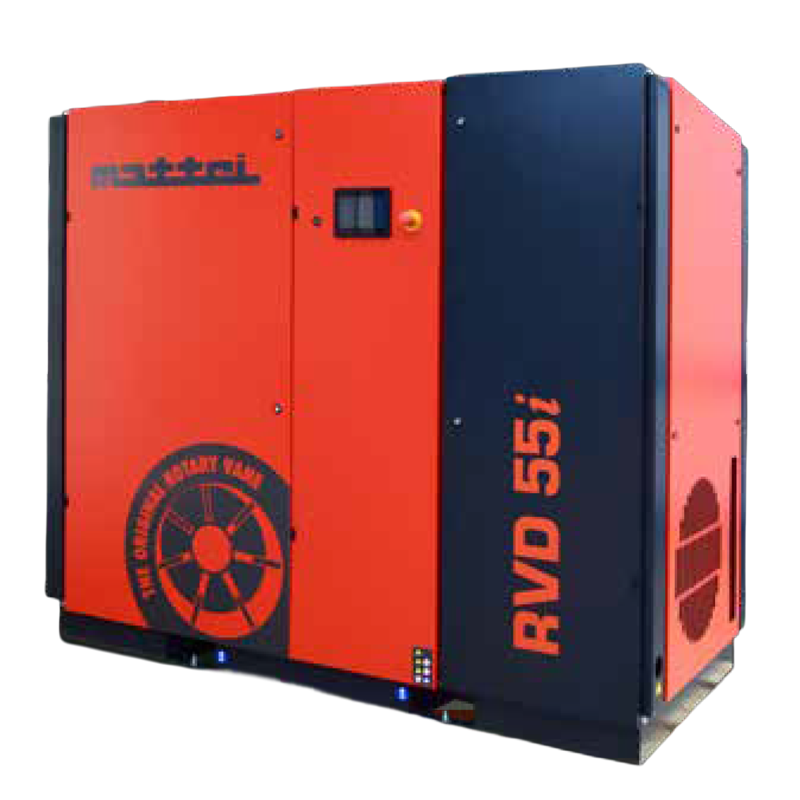

The Mattei RVD 30–55 direct‑drive rotary vane air compressors are engineered for rugged reliability, exceptional energy efficiency, and the lowest lifecycle costs in demanding industrial environments. Designed as single‑stage, fixed‑speed compressors ranging from 40 to 75 horsepower, the RVD 30–55 Series delivers consistent, high‑quality compressed air for continuous‑duty applications, including harsh and dirty operating conditions.
At the core of the RVD Series is Mattei’s proprietary bearing‑less rotary vane technology, featuring a Rotor Stator Unit (RSU) with zero thrust forces, zero wear vanes, and zero wear bushings. Unlike rotary screw compressors that rely on multiple bearings subject to axial and thrust loads, Mattei’s rotary vane design eliminates these failure points entirely. As a result, RVD compressors are capable of over 100,000 hours of operation without a planned airend overhaul, delivering unmatched airend longevity and long‑term reliability.
The RVD 30–55 compressors utilize a direct‑drive coupling between the airend and high‑efficiency motor, eliminating belt and gear losses while reducing maintenance and noise. This design improves overall efficiency, lowers operating costs, and ensures smooth, quiet operation even under heavy load.
A key advancement in the RVD 30–55 Series is Mattei’s Isolated Cooling Zone Technology, which separates the cooling system from the rest of the compressor cabinet. Oversized coolers are housed in a dedicated cooling zone, keeping internal components cooler and cleaner while dramatically simplifying maintenance. Radiators can be cleaned easily from the inside out, making these compressors especially well‑suited for hot, dusty, and industrial environments.
Each unit is equipped with the Maestro XC controller, an Industry 4.0–ready, 7‑inch touchscreen control system with Ethernet connectivity and optional 4G modem. The controller provides real‑time operational data, maintenance tracking, automatic restart, phase reversal protection, and remote monitoring through the Mattei Cloud. Advanced diagnostic and predictive maintenance capabilities help maximize uptime and equipment life.
The RVD Series also features Mattei’s XTREME Lubricant Recovery Technology, a maintenance‑free scavenged oil return system that reduces energy losses, improves air quality, and limits oil carryover to 1–3 PPM. Long‑life filtration components significantly extend service intervals, with oil filters rated for 5,000 hours and air/oil separator elements rated for 10,000 hours.
Available configurations include air‑cooled or water‑cooled versions, optional heat recovery systems capable of repurposing up to 80% of mechanical energy into usable hot water, moisture separators with zero‑loss drains, and optional 80‑ or 120‑gallon air receivers. Additional upgrades such as IE4 high‑efficiency motors and oil quality monitoring sensors further enhance energy savings and reliability.
Eligible for Mattei’s MyCare 6 & 10 extended warranty program, the RVD 30–55 Series provides up to ten years of coverage on critical components when properly commissioned and maintained. Built for industrial users who demand long service life, minimal downtime, and maximum efficiency, the RVD 30–55 delivers dependable compressed air with unmatched total cost of ownership advantages.
